Scott Scale 24 Disc
$649.99
Details
The SCOTT Scale 24 Disc is our truly functional bike for kids who like to race. With suspension and disc brakes this bike is made for racers.
Please note that bike specifications are subject to change without prior notice
- Scale 24 Disc Junior Alu-Rahmen
- SR Suntour XCT-JR 24 Disc Gabel
- Shimano Tourney 8 Gänge
- Tektro-Scheibenbremsen
- Kenda Booster

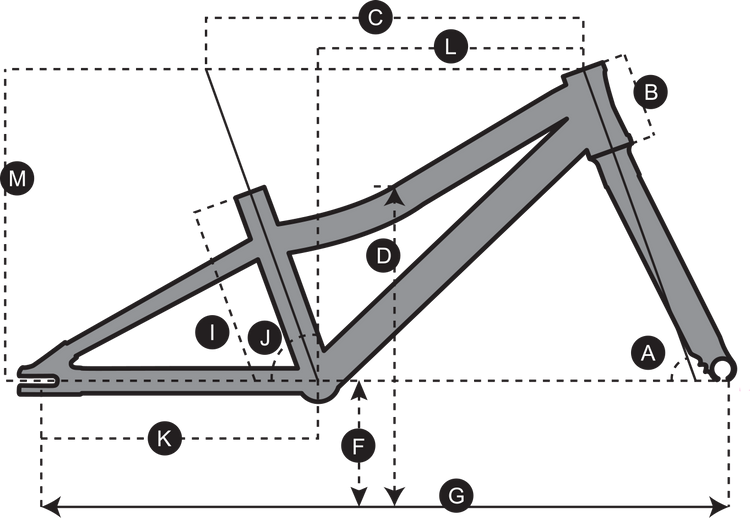

| 24" | ||
|---|---|---|
| A | HEAD TUBE ANGLE | 69.0 ° |
| B | HEAD TUBE LENGTH | 100.0 MM |
| C | TOP TUBE HORIZONTAL | 500.0 MM |
| D | STANDOVER HEIGHT | 584.8 MM |
| E | BB OFFSET | |
| F | BB HEIGHT | |
| G | WHEEL BASE | 985.0 MM |
| H | BB CENTER TO TOPTUBE CENTER | |
| I | BB CENTER TO TOP OF SEATTUBE | 310.0 MM |
| J | SEAT ANGLE | 68.0 ° |
| K | CHAINSTAY | 415.0 MM |
| L | REACH | |
| M | STACK | |
| N | STEM LENGTH | 50.0 MM |
| 0 | TRAIL |
Specs
| Pedals | Kids Pedals / w/Reflector |
|---|---|
| Fork | SR Suntour XCT-JR 24 Disc, 50mm travel, Softer spring setup |
| Hubs | Formula DC-19-F / QR|Formula DC-25-8-R / QR |
| Rims | Alex C-1000 Disc |
| Stem | Alloy 50mm / +10° / 25.4mm clamp |
| Chain | KMC Z8.3 |
| Frame | Scale 24 Disc Junior, Alloy 6061 / Semi int. HT, SCOTT dropout / IS |
| Tires | Kenda K1227 Booster / 24x2.2" / 30TPI |
| Brakes | Tektro SCM-02, Mech. Disc Brake / 160mm rotor |
| Saddle | Syncros Future Pro |
| Spokes | 15G / UCP / black |
| Headset | Feimin FP-H807, 1 1/8" Semi Int. |
| Crankset | Prowheel / Alloy Crank 140mm, 32T / w/CG PVG double cover |
| Seatpost | Alloy / 26.8mm / 300mm |
| Shifters | Shimano SL-RV400-8R, Revo Shifter |
| Handlebars | Kids riser bar alloy D:19mm, 560mm / 20mm Rise, Syncros Grips Kids100/80 D19 |
| Brake Levers | Tektro Junior / Twist Shifters |
| Bottom Bracket | Feimin / BB68 / cartridge / square taper |
| Rear Derailleur | Shimano RD-TX800 Tourney, 8 Speed |
| Accessories & Extras | Kickstand Syncros Stem Protector |
| Cassette/Freewheel | SunRace CSM55, 8 Speed / 11-34T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Silver / 24-inch | 192820757919 | 290762222 | 210000012866 |
