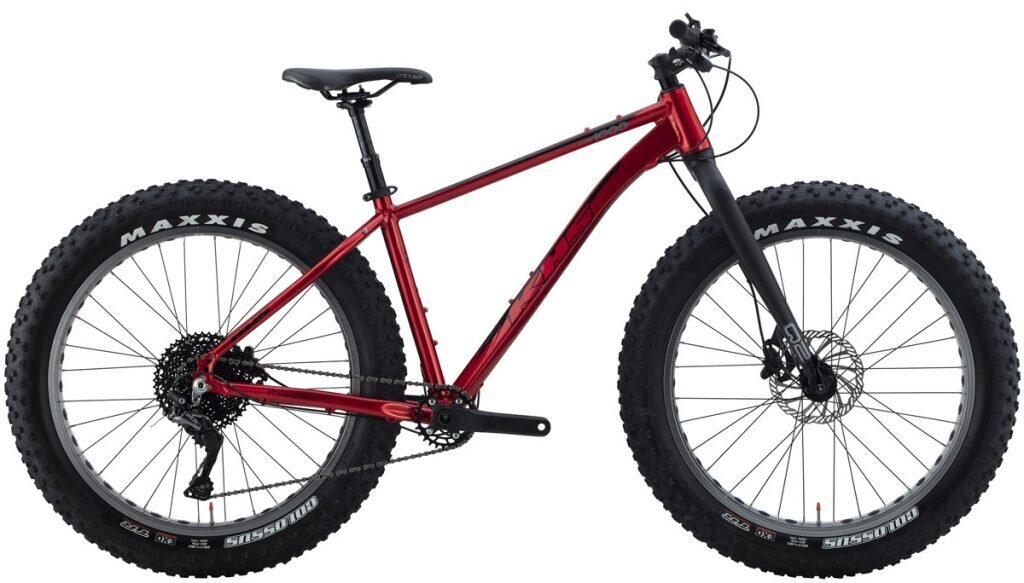

KHS 4 Season 1000

KHS 4 Season 1000
  • Color: Metallic Red
Metallic Red
Please select options


Fat bikes feature ultra-wide tires that allow riders to take on snow, sand, rocks, trails, and just about any other obstacle. There is no season they can't ride in. They are easy to pedal, lighter than you'd expect, and just plain fun to take out and ride.

- Fork upgrades available: Manitou Mastodon Pro 100mm or Carbon Fork Option

**Sale on in-stock bike only.
**Shipping available for an additional fee.


Frame Alloy 6061 w/Custom Formed TT & DT, 1.5 Tapered H/T, Replaceable Derailleur Hanger 12x197mm
Fork Alloy Straight Blade, 1,5 Taper, 15mm x 150 Thru-Axle or Manitou Mastodon Pro 100mm or Carbon Fork Option
Headset Threadless 1-1/8~1.5 Tapered, Zero Stack
Rims/Wheels Alloy 80mm w/Rectangular holes
Hubs Front: KT Alloy Disc, Forged, S/B, 15mm Thru-Axle 15x150
Rear: KT Alloy Disc, Forged, S/B, Cassette, 12x197 Thru-Axle
Spokes 14G Black Stainless, 32x32
Tires Maxxis Colossus, 26x4.8, 120 TPI, Folding
Crankset Samox 2pc Forged w/Outboard Bearing, 28T, Narrow Wide, S:170, M-XL:175
Bottom Bracket Outboard Cartridge Bearing
Chain KMC X11 w/MissingLink
Rear Derailleur Shimano SLX RD-M7000
Cassette/Rear Cogs SunRace 11/46T, 11-Speed
Shifters Shimano SLX SL-M7000, Right only
Handlebars Alloy 35mm Riser, 720 x 15mm
Tape/Grips Q2 Sport Lock-on
Stem Alloy 35mm 3D Forged, Threadless 4-bolt, S:60mm, M-XL:70mm
Brake Levers Shimano MT401
Brakes Shimano MT400 Hydraulic Disc, 180/160mm Rotors, Wave 12
Pedals Sold separately
Saddle KHS Sport Dual Density
Seat Post KS-Suspension Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Red / Medium 756928907449 901540003 210000008528
