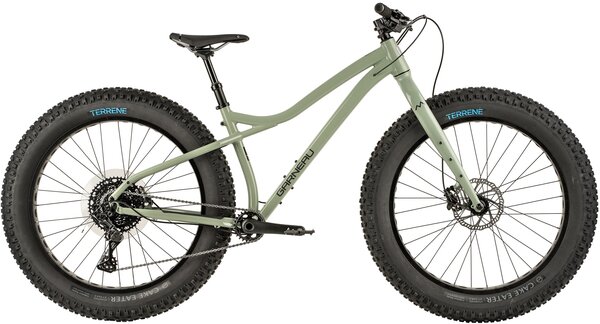

Garneau Gros Louis 2
This item is currently not available.
Details
To explore the many facets of fatbiking, whether it be adventure – capital A, performance handling in snowy forests or simply enjoying a winter stroll, the Gros Louis 2 is at your service for fun and thrills. Its aluminum frame is designed close to the ground which allows you to easily get back on the saddle even with both feet in powder snow. Add to that hydraulic disc brakes designed for winter conditions, clearance for 5-inch tires and a choice of two colorways, and all that's left to do is head out on your next adventure.
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A- Seat tube length C/TOP | 360 | 390 | 420 | 450 | 480 |
| B- Effective Top tube length | 595 | 615 | 635 | 660 | 685 |
| C- Chainstay length C/C | 455 | 455 | 455 | 455 | 455 |
| D- Head tube height | 100 | 110 | 120 | 130 | 140 |
| E- Seat tube angle | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| F- Head tube angle | 66° | 66° | 66° | 66 | 66° |
| G- Bottom bracket drop | 70 | 70 | 70 | 70 | 70 |
| H- Fork rake | 60 | 50 | 60 | 60 | 60 |
| I- Trail | 110 | 110 | 110 | 110 | 110 |
| J- Stand over height | |||||
| K- Wheelbase | 1180 | 1202 | 1209 | 1235 | 1272 |
| L- Stack | 604 | 613 | 622 | 631 | 640 |
| M- Reach | 427 | 445 | 463 | 485 | 508 |
Specs
| Frame | Hydroformed S-6 LT Aluminium, disc, T12 x 197mm axle |
|---|---|
| Fork | S-6 aluminium, disc, T15 x 150 mm axle |
| Wheels | 27.5'', GL80 alloy, caribou co. Fat specific thru axle hubs |
| Hubs | Caribou Co., Fat specific, T12x197mm, cassette, 6-bolts disc |
| Spokes | 14g, stainless steel |
| Tires | Terrene Cake Eater, foldable, 27.5'' x 4.5'' |
| Bottom Bracket | Prowheel, external bearings, 100mm |
| Crankset | Prowheel MPX-11, 2pcs, Narrow wide 26T |
| Shifters | Microshift xpress plus shifter |
| Rear Derailleur | Microshift Advent X, w/clutch, 10-speed |
| Cassette/Freewheel | Microshift G-104, 11-48T, 10-speed |
| Chain | KMC X10 EPT |
| Brakes | Power, hydraulic disc |
| Rotors | Power, 180mm/160mm, 6 -bolts |
| Brake Levers | Power |
| Handlebars | Caribou Torngat 2, 20mm rise, Ø31.8 mm, 780mm |
| Tape/Grips | Foam, lock-on |
| Stem | Caribou Torngat 2, 3 degree |
| Headset | Semi-integrated, seal bearings, 1 1/8''-1 1/2" |
| Seatpost | UD TVS dropper, XS/S:100mm M:125mm L/XL: 150mm travel, internal, Ø31.6 mm |
| Saddle | Garneau Explore |
| Pedals | Nylon Platform w/pins |
* Subject to change without notice.
