Details

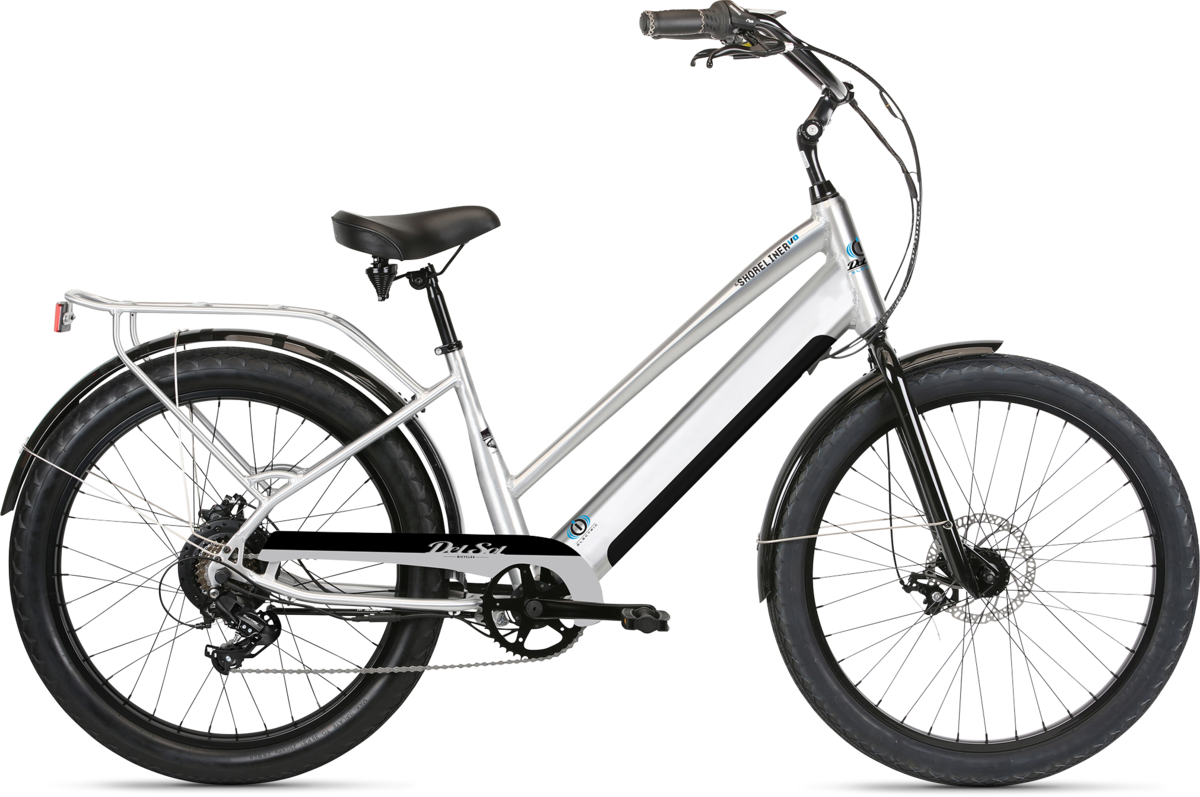

- Cruiser looks with e(asy)-bike simplicity make for an approachable, accessible bike for around town
- Throttle assist makes getting going from a stop sign a cinch
- Hand-Holder e-bike specific handle on saddle makes moving the Shoreliner i/O much easier
- Fully internal downtube battery provides generous 522Wh/14.5Ah capacity
- Classic raked fork complements cruiser styling
- Class 2 e-bike: throttle only or pedal assist up to 20mph
Specs
Frame | Shoreliner i/O | 6061 heat-treaded aluminum | TIG-welded construction | fully internal battery | internal e-bike wiring | 73mm threaded BSA bottom bracket shell | I.S. Disc tab | hub-drive specific 136mm spacing |
---|---|
Fork | Shoreliner | classic raked steel | 1-1/8" threaded | I.S. 6-bolt disc | 3/8" x 100mm spacing | bolt-on |
Rims | Alloy | Width (internal): 29.4mm | 36h |
Tires | Cruiser 26 x 2.5" |
Bottom Bracket | 73mm threaded BSA shell | JIS square taper | 131.5mm spindle length |
Crankset | 3-piece | Forged alloy | 42T chainring with colorway-matched chainguard |
Shifters | Shimano Revo | 7-speed |
Rear Derailleur | Shimano Altus M310 | 7-speed |
Cassette/Freewheel | Shimano | 14-28T | 7-speed |
Chain | KMC Z7 | 7-speed |
Brakes | Tektro MD M280 Mechanical Disc |
Brake Levers | Alloy | Linear Pull |
Handlebars | Laid-back Cruiser | 700mm Wide |
Tape/Grips | Del Sol foam | Stitched cover |
Stem | Quill | Alloy | ?25.4 bar bore | 90mm length |
Headset | 1-1/8" integrated | Threadless |
Seatpost | Alloy | 27.2 x 350mm |
Saddle | Del Sol Couch saddle | Dual elastomers | Del Sol Hand-Holder e-bike specific handle |
Pedals | Boardwalk cruiser | Shock-absorbing Kraton inserts |
Accessories & Extras | Kickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables |
Battery | 36V/14.5Ah | 522Wh | Fully-integrated within down tube |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Brushed Alloy / One Size | 691840316132 | 31613 | 210000011065 |
Americano / One Size | 691840316149 | 31614 | 210000011066 |
